HD-06 ATR

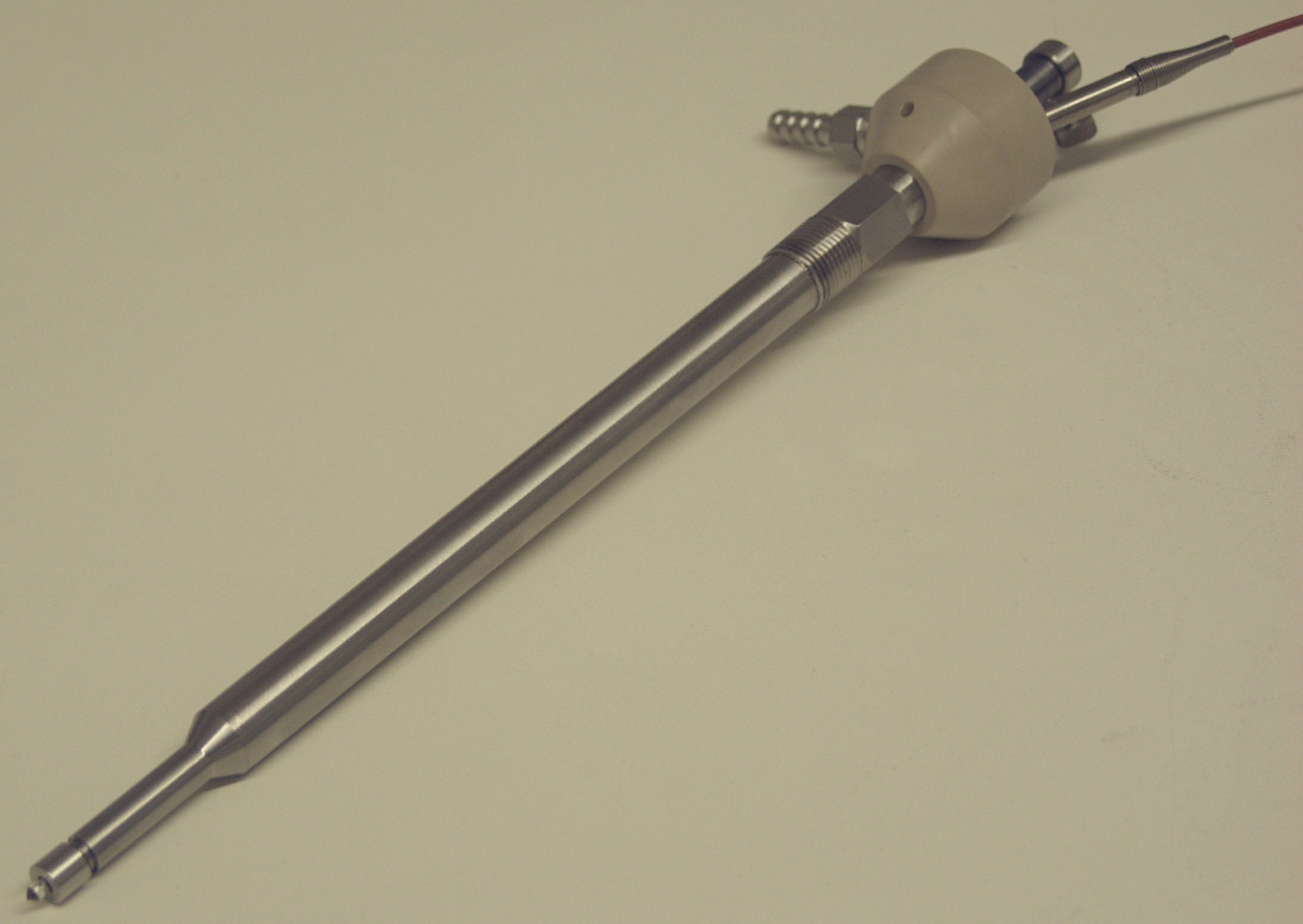

The high-pressure head fits directly onto the shaft of a standard ReactionView&trade
probe, and provides cooling using a flow of either room-temperature or cooled gas (air or nitrogen). A 7.6 cm long tapered
ATR or transmission crystal inside the head carries the mid-IR signal to the end of the probe head. A choice of standard
reactor fittings can be included built into the head (e.g. 3/8" NPT or 9/16" HIP style). The Remspec high-pressure
head is rated for reactor temperatures up to 300 C, depending on the cooling used, and pressures over 200 bar. Reactor pressures of over
300 bar have been shown to not cause a loss of pressure. High pressure probe heads can also be used at low temperatures
down to less than -100 C
|
|
